Coating Guide: Find the right coating for your application

Für weitere technische Details, klicken Sie auf die Beschichtung.

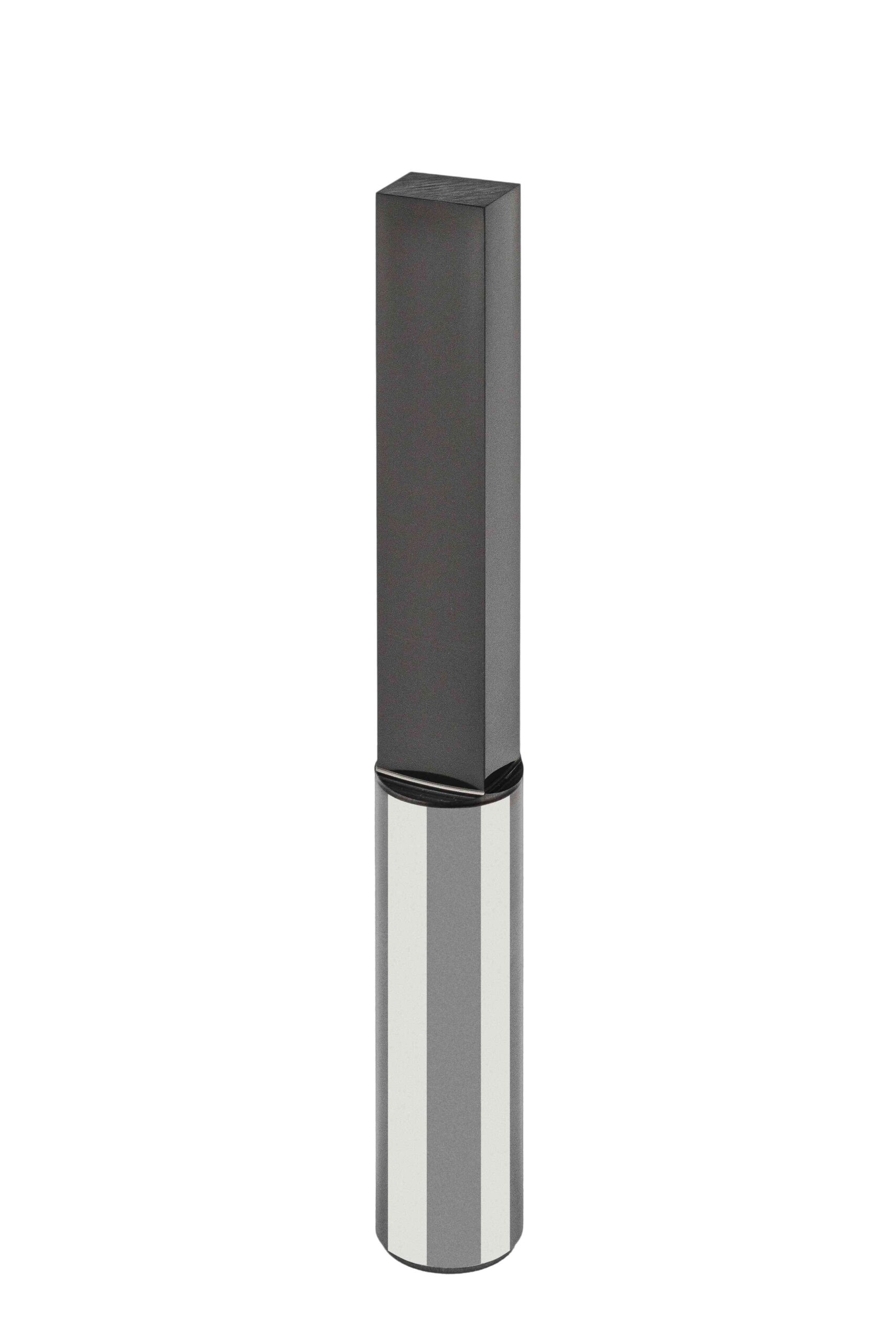

PVD + a-C:H

For demanding tribological applications to reduce friction, wear or torque.

Coating material:	a-C:H based
Colour:	Black
Coathing thickness [μm]:	0.5-3
Coating temperature [°C]:	300-500
Nanohardness according to ISO 14577 HIT [GPa]:	21 - 41
Coefficient of friction against steel (dry):	0.05-0.1
Max. application temperature [°C]:	300

C35

New generation coating with excellent anti-sticking properties and enhanced hardness.

Coating material:	Cr Based
Colour:	Light Grey
Coating thickness [µm]:	0.5-4
Coating temperature [°C]:	200-500
Nanohardness according to ISO 14577 HIT [GPa]:	35 ± 3
Max. application temperature [°C]:	700

AlTiX

Variant of our HDP AlTiN coating with an optimized microstructure and hardness.

Coating material:	AlTiN based
Colour:	Anthracite
Coating thickness [µm]:	1-3
Coating temperature [°C]:	< 500
Nanohardness according to ISO 14577 HIT [GPa]:	38 ± 2
Max. application temperature [°C]:	1100

CrN

Good corrosion resistance with a dense and smooth surface easy to polish.

Coating material:	CrN based
Colour:	Silver grey
Coating thickness [µm]:	1-4
Coating temperature [°C]:	200-500
Nanohardness according to ISO 14577 HIT [GPa]:	21 ± 3
Max. application temperature [°C]:	700

TiCN

High hardness and toughness with great anti-Sticking properties.

Coating material:	TiC based
Colour:	Reddish
Coating thickness [µm]:	0.5-4
Coating temperature [°C]:	< 500
Nanohardness according to ISO 14577 HIT [GPa]:	38 ± 3
Max. application temperature [°C]:	600

AlTiN

All-round application coating with high resistance to oxidation.

Coating material:	AlTiN based
Colour:	Anthracite
Coating thickness [µm]:	0.5-4
Coating temperature [°C]:	200-500
Nanohardness according to ISO 14577 HIT [GPa]:	37 ± 3
Max. application temperature [°C]:	900

AlCrO

The AlCrO coating, certified for contact with food, delivers excellent release properties, minimal friction, and outstanding wear and chemical resistance.

Coating material:	AlCrN based
Colour:	Light grey
Coating thickness [μm]:	0.5-4
Coating temperature [°C]:	< 500
Nanohardness according to ISO 14577 HIT [GPa]:	41 ± 4
Max. application temperature [°C]:	1100
